A Marlborough homeowner in NE Calgary booked TechVill for a Bosch SGE63E15UC/50 built-in dishwasher that was no longer cleaning the way it should. The ticket came in as a general “needs maintenance” request rather than a specific fault — the kind of vague symptom that only resolves into a real diagnosis once a technician isolates which part of the wash system has actually degraded. TechVill technician Randy traced it to two failures at once: a worn wash motor and two damaged spray arms.
A “needs maintenance” or “not cleaning properly” complaint on a dishwasher points at the wash system — the pump and spray arms that move water onto the dishes — but it does not tell you which component is at fault. Wash motors, upper spray arms, and lower spray arms all wear at different rates and produce overlapping symptoms. Guessing wastes a parts order and a return visit. The diagnosis below walks through how the fault was isolated to both the motor and the arms on the first visit.
Diagnosis – Isolating the Wash System Fault
Step 1 — Confirm the symptom is a wash-quality problem, not a fill or drain fault.
Poor cleaning can come from three unrelated systems: the water inlet valve (not enough water entering), the drain circuit (dirty water not clearing), or the wash system (water entering fine but not being driven onto the dishes with enough pressure). Randy verified the machine was filling and draining normally, which pointed the diagnosis squarely at the wash circuit rather than the inlet or drain side.
Step 2 — Isolate the wash motor (circulation) as the pressure fault.
The wash motor is the powered pump that drives water up through the spray arms during the cycle. As its bearings and impeller wear, circulation pressure drops — water still reaches the arms, but with too little force to strip food off the dishes, so plates come out with residue even on a full cycle. Randy identified the wash motor as no longer delivering full circulation pressure, which explained the weak wash the homeowner was experiencing.
Step 3 — Confirm spray-arm damage on both levels.
Spray arms are the rotating bars that fan wash water across the upper and lower racks. When they crack, clog, or bind up and stop spinning freely, coverage becomes patchy — one rack or one zone stays dirty. On inspection both the upper and lower spray arms showed damage, which is why the machine could not clean evenly regardless of pump pressure. That confirmed a two-front wash-system failure: a motor that could not build pressure feeding arms that could not distribute what pressure remained.
The Repair – Wash Motor and Two Spray Arms

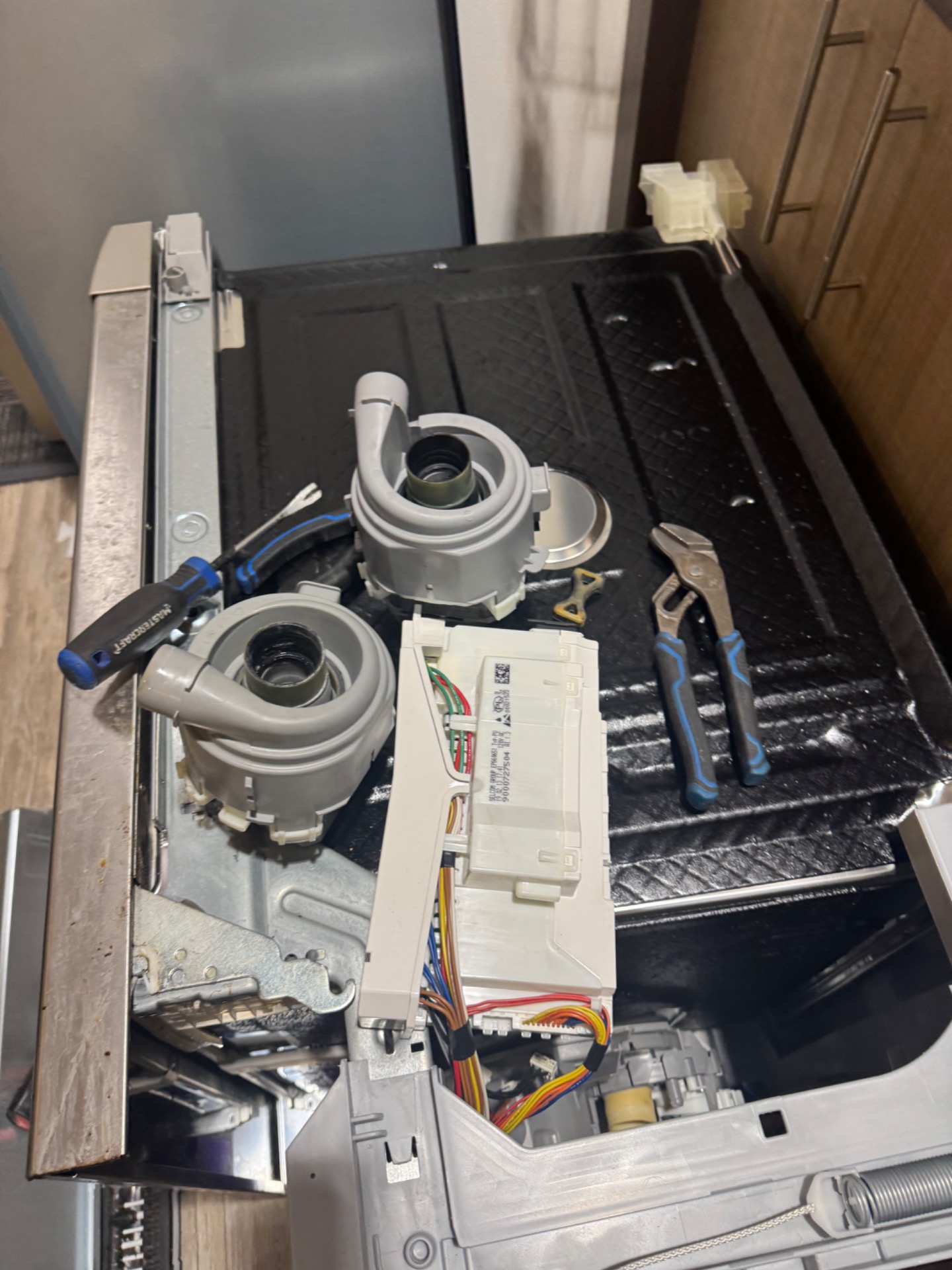

With the fault isolated to the motor and both spray arms, Randy replaced all three components with genuine Bosch OEM service parts sourced through the BSH Group parts catalogue.
Components replaced:
- Wash motor (part #00705174) — the circulation pump that drives water up through the spray arms; restores the wash pressure needed to clean a full load
- Spray arm (part #11012631) — a rotating water-distribution arm that fans wash water across one dish rack; a cracked or bound arm leaves that zone dirty
- Spray arm (part #00668148) — the second rotating spray arm covering the other rack level; replaced alongside the first so water coverage is even across both racks
Cycle test performed:
After the motor and arms were fitted, Randy ran a full cycle to verify the fix. The dishwasher completed the cycle with wash pressure and coverage restored, and — critically after any wash-system work — there was no leaking during or after the test. A poor seal on a new wash motor or a misaligned spray arm can produce a slow leak that damages surrounding cabinetry or flooring, so the no-leak check is part of closing the job, not an afterthought. The unit was returned to service in a single visit with all three parts installed.
The Result
Full wash operation was restored in one visit. The dishwasher ran a complete cycle cleanly, with even water coverage on both racks and no leaks at the wash motor or spray-arm seals. The repair carries TechVill’s 90-day labour warranty, alongside up to a one-year manufacturer’s parts warranty on the Bosch components.
The total came to $970 plus 5% GST — $1,018.50 CAD — covering the three OEM parts ($685), a parts handling fee ($30), and labour ($255). On a Bosch SGE-series dishwasher, which retails new well above that, a targeted wash-system repair keeps a working built-in machine in service instead of replacing it over a cleaning complaint that traced to three replaceable wear parts.
The value of isolating the fault system by system — fill and drain first, then motor, then arms — is that it catches both failures on the first visit. A quicker read might have swapped only the spray arms and left the worn motor in place, so the dishes would still come out under-washed and the homeowner would be booking a second call. Genuine Bosch parts matter here too: the wash motor and spray arms are matched to the SGE-series tub geometry and flow path, and an aftermarket pump with a slightly different output or an arm with off-spec spray ports changes the wash pressure the machine was engineered around.
