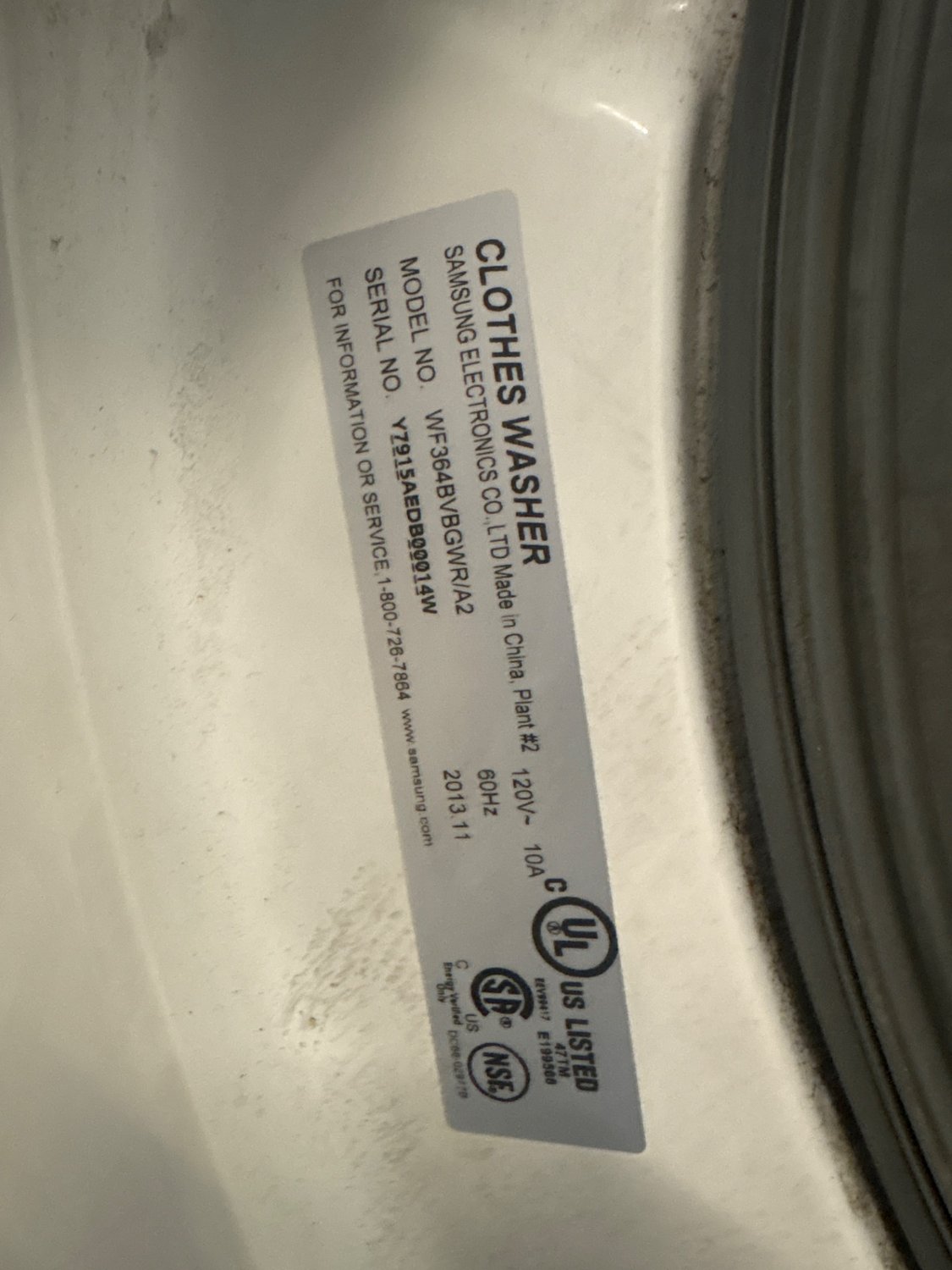

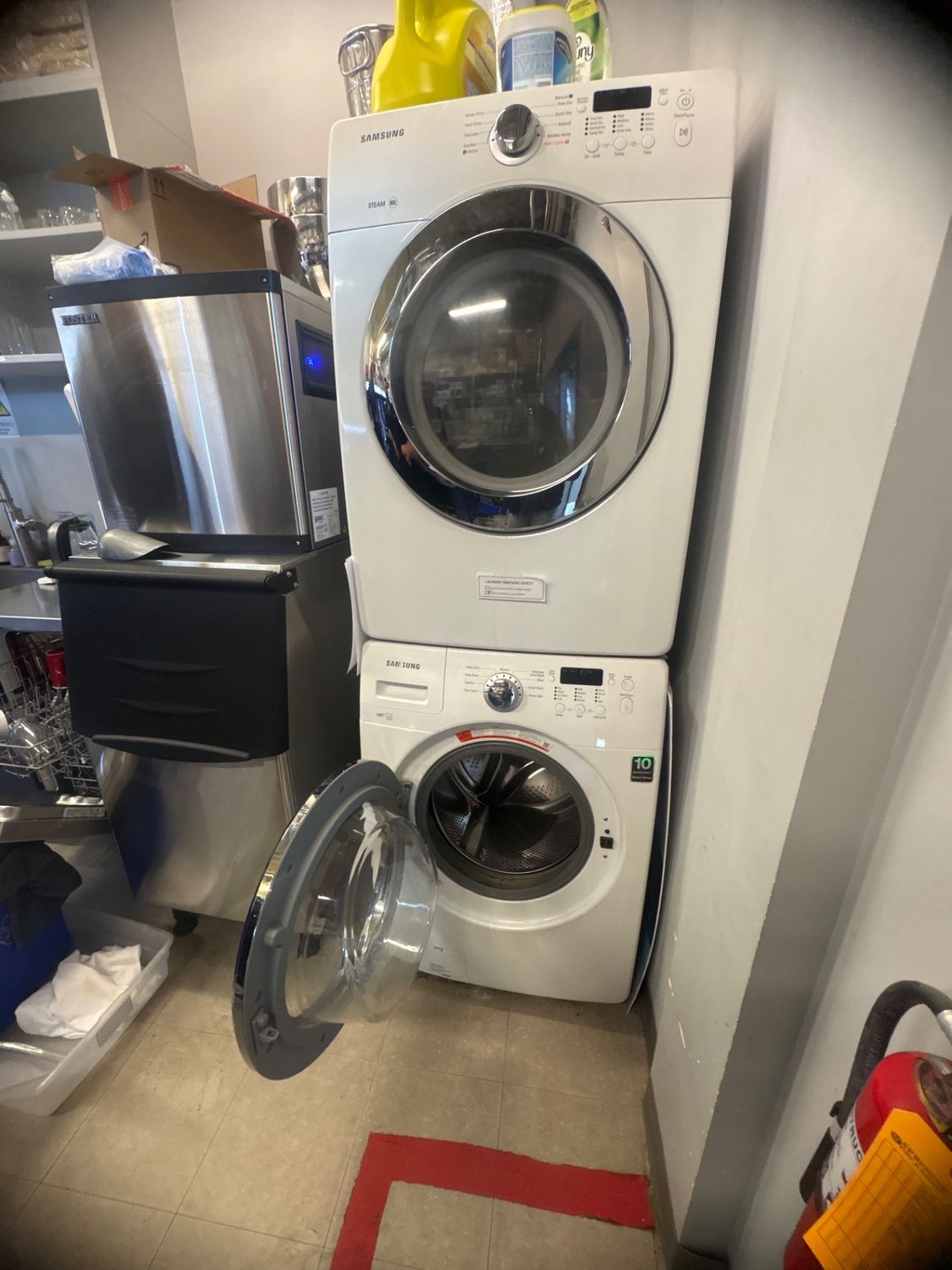

A Samsung front-load washer (model WF364BVBGWR/A2) at a property off Aero Way in NE Calgary was stopping partway through its cycle. The complaint was simple — the machine halted mid-cycle — but the diagnosis is a good example of why a main control board should be the last thing named, not the first.
A control board is one of the more expensive single parts on a washer. Pointing at it early, before ruling out the mechanical subsystems it drives, is how customers end up paying for the wrong part. So TechVill technician Boris worked the problem the other way around: prove each function individually, then see what only a coordinating fault could explain.
How the diagnosis went:
- Fill. Confirmed working — the machine took on water correctly.
- Tumble. Confirmed working — the drum turned as it should during wash.
- Drain. Tested on its own, draining was fine.
- Spin. Tested on its own, the spin function ran fine.
- Full cycle. Despite every individual function checking out, the machine stopped specifically at the transition into the drain-and-spin phase during an actual complete cycle.
That result is the whole diagnosis. When fill, tumble, drain, and spin each work in isolation but the machine cannot sequence through them into the drain-and-spin phase, the fault is not in any one mechanical component — it is in the part responsible for coordinating the cycle’s timing and transitions. That points at the main control board (PCB). Reaching that conclusion required ruling out the individual subsystems first; jumping to the board without that work would have been a guess, and replacing drain or spin components instead would have been a costly detour.
Part identified:
- Main control board / PCB assembly (part #DC92-00686F, special order) — the board that sequences the wash cycle and manages the transitions between phases; the fault that stops the machine at drain-and-spin
Boris quoted the repair at $693.53 CAD ($660.50 + 5% GST): parts $418, a $30 parts fee, and labour $212.50. He also disclosed that the board is a special-order part, which adds wait time to the repair. Weighing the cost of a special-order control board against a new machine, the customer chose to replace the washer — a reasonable call, and one made with an accurate diagnosis and honest numbers rather than a guess and a wait.
