Blomberg Built-In Refrigerator — Two Components First, Control Board Only If Needed (Bridgeland, Calgary)

A homeowner in a Bridgeland condo contacted TechVill after their Blomberg K56300NEBU built-in refrigerator stopped freezing properly. The unit is a European built-in column from Blomberg’s premium line — Turkish-origin manufacturer under the Arçelik/Beko group, less common in Canadian appliance service than the German or Italian premium tiers, but built on the same cabinetry-integration standard. The repair scope decisions on this call illustrate how a conservative-first approach plays out in practice.

On arrival

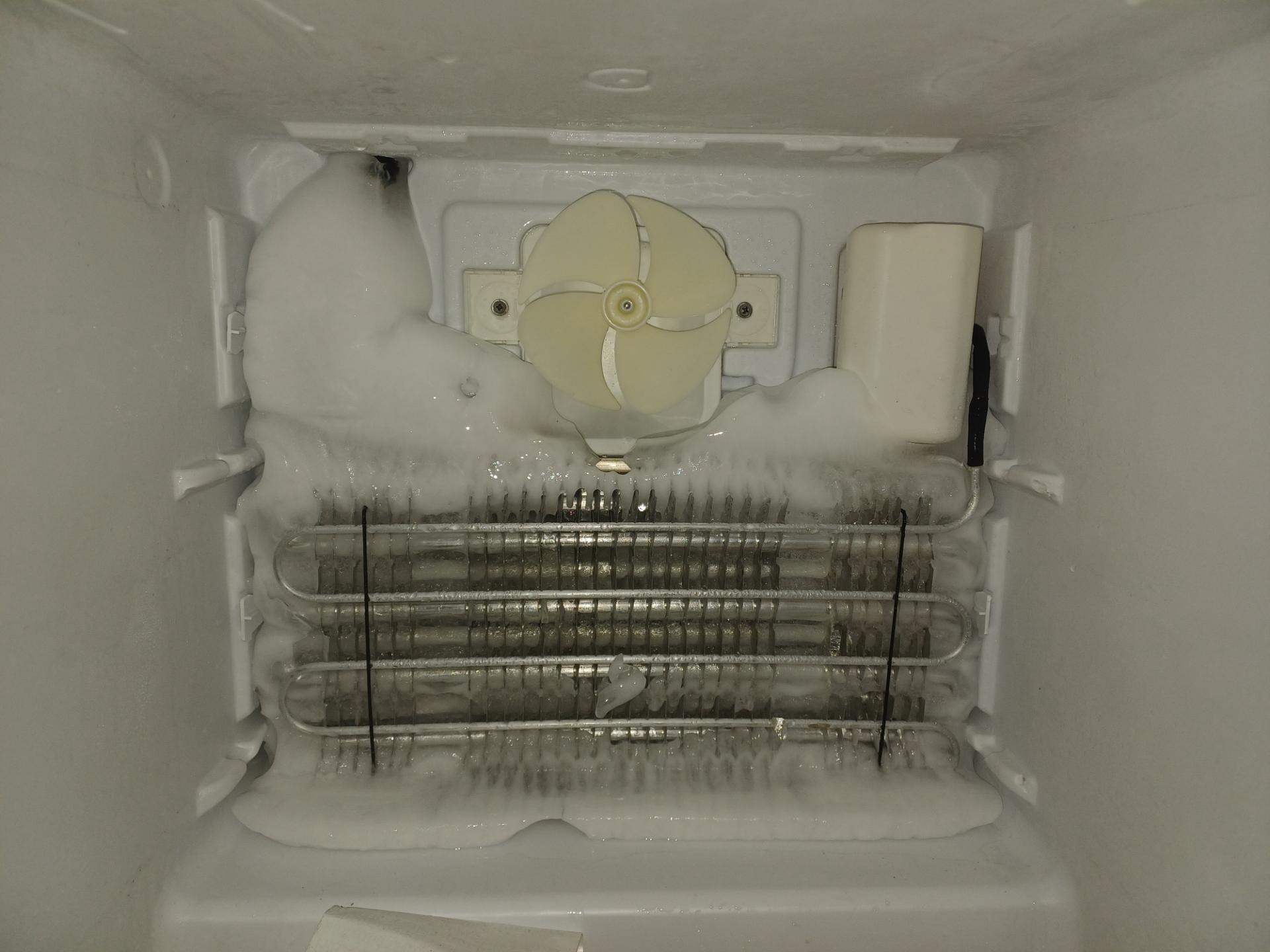

Technician Amin opened the unit and read the evaporator condition first. The diagnostic conclusion came quickly: heavy ice accumulation on the evaporator coils. That single observation maps to a known failure pattern — the defrost cycle isn’t terminating correctly, water from normal frost build-up is accumulating as ice on the evaporator, the ice is blocking airflow through the coils, and the freezer compartment can no longer hold its setpoint. The “not freezing” complaint is the downstream symptom of an upstream defrost-cycle failure.

The defrost cycle on this generation of Blomberg uses three primary components: the evaporator fan (moves air across the coil to support the cycle), the defrost thermostat / thermal protection (terminates the heat cycle when the coil clears), and the main control board (commands the cycle on its programmed schedule). Any one of the three can be the failure. All three are technically replaceable as a preventive scope. The decision is which to do today.

The decision: cheapest-and-most-likely first

A less disciplined approach to a defrost-cycle failure quotes all three components on the first visit and bills accordingly. On this unit that would have ballooned the ticket past $1,000. The opposite extreme — replacing only the fan and hoping — would have left the customer with a callback in three months when the next-most-likely component failed.

Amin scoped the middle path. Replace the two most likely failed components today. Monitor the unit’s defrost behaviour under normal operation. If the icing returns, the control board is next — and that scope, including labour, gets quoted explicitly at the time it becomes necessary, not pre-emptively.

That decision required a second piece of disclosure. Future control-board replacement on this built-in is a two-technician job because the unit has to come out of its cabinetry slot to reach the board. That’s a meaningfully bigger labour line than the repair on the current visit. Telling the customer this in writing now — at a low-stress moment, before they’re choosing between a callback quote and replacement — is what keeps the conversation honest if it ever happens.

The repair done on this visit

Components replaced:

• Blomberg fan assembly D70545ne (part #4305896000) — evaporator fan motor and bracket; restores reliable airflow across the coil during defrost and refrigeration cycles
• Blomberg thermal protection (part #4919820700) — the defrost-cycle thermal control component (catalogued in the Blomberg European service stream as “thermal insurance” — a translation quirk for what English service literature calls a thermal fuse / defrost thermostat)

Manual defrost performed:

The heavy ice accumulation on the evaporator coils was removed manually before reassembly — meltwater carefully captured rather than left to refreeze. This is the step the parts catalogue doesn’t tell you to do but the repair requires: replacing the defrost components without clearing the existing ice means the new cycle starts already loaded, and the new thermal control’s first job is to compete against an evaporator that’s still mostly frozen. Clearing it first lets the unit start at known baseline.

Cooling and airflow performance were verified on the way out. The unit was returned to service with a three-month labour warranty on this repair.

The conversation the customer left with

The work order didn’t leave the customer with a “you should be fine” — which is the conversation that turns into resentment if the unit refails. The technician was explicit:

• The two most-likely components have been replaced and the system has been cleared of accumulated ice.
• The unit is now under observation. The defrost cycle should run cleanly from here, and the icing pattern should not return.
• If the icing does return, the control board is the next repair, and that scope will require two technicians to pull the unit from the cabinetry. The cost will be quoted at that point, with the customer’s full information.

Setting expectations this way costs the technician nothing and protects everyone. The customer is not surprised by a callback. The shop is not on the receiving end of a complaint about a repair that “didn’t fix it.” Both sides understand that the unit was treated proportionately on the evidence available today, with a documented path forward if the evidence changes.

Why this matters beyond the parts

Blomberg’s built-in line sits in the upper-mid tier of European premium refrigeration — more affordable than Miele or Thermador Freedom Collection, with similar cabinetry integration and flush-install conventions. Servicing it correctly requires knowing the parts catalogue (the European service stream uses translated component descriptions and a different prefix system than North American brands) and knowing the cabinetry-access protocol for future repairs. Many shops in Calgary decline this brand because the supply chain isn’t routine.

The conservative-first approach on this call wasn’t about underselling the repair. It was about reading the evidence — iced evaporator, fan and thermostat as the most-likely contributors, control board not yet symptomatic — and matching the repair to what the evidence supported. The customer paid $511 + GST for the actual most-probable cause, not for a wider preemptive scope.
