A homeowner in the Lake Bonavista / Willow Park area of SE Calgary contacted TechVill after their KitchenAid UX-series range hood stopped pulling air. The clue that mattered: the hood lights still worked, but the fan had gone silent. That single detail tells you most of what you need before the cover even comes off.
Diagnosis and Repair – Powered, But Not Spinning
Working lights confirm power is reaching the unit—no tripped breaker, no household supply fault—and that the light circuit, which switches separately from the fan, is intact. The failure was isolated to the motor side. TechVill technicians Alex and Yevhen confirmed the motor was receiving voltage but would not turn.
On a single-phase AC induction motor like the one in this hood, that “powered but stalled” pattern points to one of two parts: the motor itself (seized bearings or failed windings) or the start capacitor. The capacitor supplies the phase-shifted current that creates starting torque; when it fails open, the motor sits energized but produces no torque and never breaks away from rest.
Rather than guess which of the two had failed, both were replaced as a paired repair—the right call on a high-use ventilation motor, where leaving the other part near end-of-life invites a callback within months. The control housing cover, damaged during the failure, was replaced as well so the customer received a complete, sealed-up repair rather than a partial one.
Components replaced (Whirlpool Corporation service parts — KitchenAid shares the same W-prefix catalogue):
- Service motor, 600 CFM (part #W10294006) — drives the blower wheel that pulls cooking exhaust through the hood
- Start capacitor (part #8186677) — supplies the phase-shift current that gives the single-phase motor its starting torque
- Control housing cover (part #W11387938) — encloses and protects the motor wiring and control connections
The exact KitchenAid model designation was not cleanly recorded on the source ticket—the unit is a UX-series 600 CFM hood, and the model tag should be confirmed against the unit when ordering future parts.

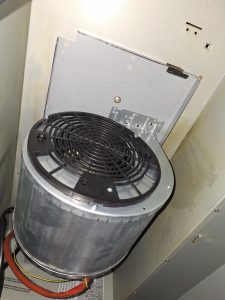

Range hoods mount overhead and the blower assembly is heavy and awkward to handle solo, so this was a two-technician visit—one supporting the assembly while the other managed the electrical and mechanical connections. On-site work took about 40 minutes. After reassembly, the fan ran cleanly on every speed setting and the lights continued to function as before. The quoted repair came to $1,795 plus GST, and the work carries TechVill’s 90-day labour warranty.
