A homeowner in Calgary’s Inglewood community contacted TechVill after their Scotsman SCCP50MB-1SS under-counter ice maker refused to restart. The unit had been switched off and, when turned back on, would no longer make ice. TechVill technician Amin pulled the unit, worked through a step-by-step electrical diagnosis, and traced the fault to a failed compressor-relay circuit on the main control board — not the compressor itself.

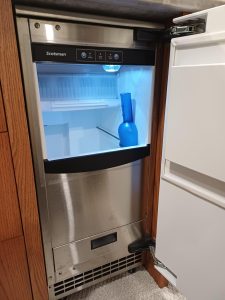

The Scotsman is a built-in specialty appliance — a stainless under-counter unit set flush into the cabinetry. A “won’t start after being switched off” symptom can come from several places: the control board, the compressor, the start relay or capacitor, the water inlet valve, or a temperature or float switch. Guessing wrong here is expensive, so the job was to isolate the actual failure point rather than swap parts on assumption.

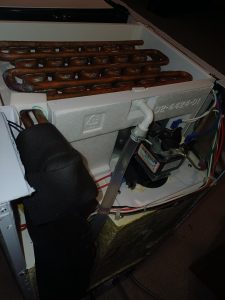

Amin started by separating what still worked from what did not. The unit filled with water and the condenser fan ran — confirming the inlet valve and part of the control board were functioning. The compressor, however, never started. He pulled the unit out for full access and confirmed no cleaning or sanitization lockout was holding the compressor off.

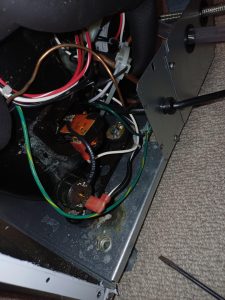

With a multimeter, Amin measured the line feeding the compressor and read 0 V — no power reaching it, even though the fan was clearly running off the same board. To rule the compressor in or out, he fitted a 3-in-1 hard start kit to force a start attempt. No current reached the wire nuts from the source harness, which proved the fault sat upstream of the compressor. The conclusion: the main control board has failed on its compressor-relay circuit. It can still power the fan, but it can no longer energize the compressor.
Amin walked the homeowner through the findings and recommended the main control board be replaced first to restore power. He was direct about the one thing the diagnosis could not yet confirm: while the board is definitely faulty, the compressor cannot be fully tested until a working board is feeding it voltage. There is a small chance the compressor has an independent fault that would surface once power returns — and if it does, it becomes the next step. The homeowner understood that limitation and authorized the board replacement, prepared to evaluate the compressor afterward only if needed.
Components replaced:
- Scotsman Controller Service Kit (part #11-0663-22) — the main control board that orchestrates the compressor, fan, water valve and ice-production cycle; the compressor-relay circuit on the failed board was no longer outputting voltage
The repair is scheduled for the install visit once the OEM board arrives. At that visit our technician will fit the new board, confirm proper voltage at the compressor, verify it starts and reaches operating current, and run a full ice-production cycle. If the compressor doesn’t start on the new board, the disclosed contingency applies and we re-quote the secondary work — no surprises.
Replacing only the board first, rather than pre-emptively swapping both board and compressor, kept this repair proportionate to what the diagnosis actually proved. On a specialty under-counter unit like the Scotsman, an OEM control board matched to the exact model configuration matters: the ice-cycle logic, water management and sanitization timing are tuned to that board, and an unmatched substitute risks mis-timed cycles. TechVill repairs Scotsman ice makers across Calgary with the test equipment to walk the electrical system end-to-end and access to genuine OEM parts through authorized supplier networks.
