The Bosch HBL8451UC01 in this Oakmont kitchen was stuck in preheat. The cycle started, the elements engaged, the cabinet warmed up – and then nothing. The oven never transitioned into the active bake phase, never reached setpoint, never began holding temperature.
That symptom has a long candidate list. Sensor probe out of calibration. An element failing under load. Relay contacts not switching cleanly. Bake circuit open downstream of the relay. Each of those gets a different parts cost and a different repair scope. The wrong one – installed against an oven that was actually failing somewhere else – means a callback against a swap that did nothing.
The way to avoid that path on a built-in wall oven at this calibre is to walk the heating circuit under live load, component by component, and rule each one in or out before deciding. TechVill is factory-authorized by Bosch, with access to the live-test diagnostic protocols specific to the 800 series, and TechVill technician Kim pulled the documentation in advance against the model. Here is how the walkthrough actually went.
Step 1 — Confirm the supply
240V at the terminal block. No voltage drop on the way to the unit, no main-side fault. The unit was getting clean power.
Step 2 — Test the elements
Bake and broil elements were measured for resistance against Bosch’s published spec for the platform. Both within range. With both reading clean on resistance, current draw under live demand was measured next – both elements pulled correct amperage during the heat call. Whatever was breaking the cycle was not the elements themselves.
Step 3 — Test the relay switching under load
Live-load measurement on the relay board confirmed the relays were closing cleanly on demand from the control module’s command signal. Contact resistance was within Bosch spec on each switching event. The relay board was issuing the right switching pattern at the right moments.
Step 4 — Test the cavity temperature sensor
The cavity temperature sensor was measured against a calibrated probe. Resistance reading matched Bosch’s specified curve within tolerance across the temperature range. The sensor was reporting cavity temperature accurately to the control module – so any failure of the cycle to transition into bake was not because the controller was getting wrong data.
What’s left when everything passes

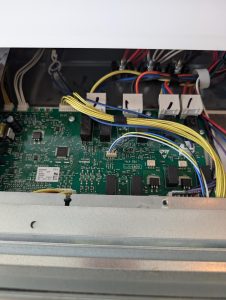

Supply, elements, relay board, temperature sensor – all healthy. The only remaining component in the cycle path was the control module: the central logic board that issues the cycle commands and manages the preheat-to-bake transition itself. By elimination, control module fault.
The alternative to working through these four steps in order is parts-rouletting: swap the sensor first, swap an element next, swap the relay board third, until the symptom disappears. That sequence costs the customer multiple parts that did not need replacing and multiple visits that did not need to happen. Methodical elimination produces the actual fault on the first visit.
The fix
The replacement was a factory-programmed Bosch service module ordered against the model. Programmed-at-factory matters here: the firmware specific to the HBL8451 platform is loaded onto the board before it ships. A blank board would need on-site flashing that is not available outside authorized service. A near-fit board from a different platform would either fail to manage cycle transitions correctly or would produce subtle behaviour drift that compounds over months.
- Bosch Range Control Module Programmed, range 5-7 (part #11020741) – factory-programmed central logic for the HBL8451 platform; manages preheat-to-bake transition, cavity temperature regulation, and relay-switching commands
A complete bake cycle ran end-to-end on the first attempt after installation. Preheat completed, the cycle transitioned cleanly into active bake, the new module held cavity temperature against setpoint through repeated on-off events.
Total for the job – diagnostic, factory-programmed OEM module, installation labour – was $757.05 CAD. One visit’s worth of methodical testing produced the right repair on the first try.
