A homeowner in the Grandview Heights area of South Surrey, BC contacted TechVill after their KitchenAid combination wall oven stopped heating on the microwave side and displayed an F1E5 error code. On a combination microwave-convection unit, that specific code is diagnostically useful — it points straight at the microwave power circuit rather than the oven cavity. TechVill technician Alex worked the fault to its source, and this visit completed the repair by installing the parts the diagnostic had already identified.
The Problem – An F1E5 Error on a Panel-Ready Combination Oven

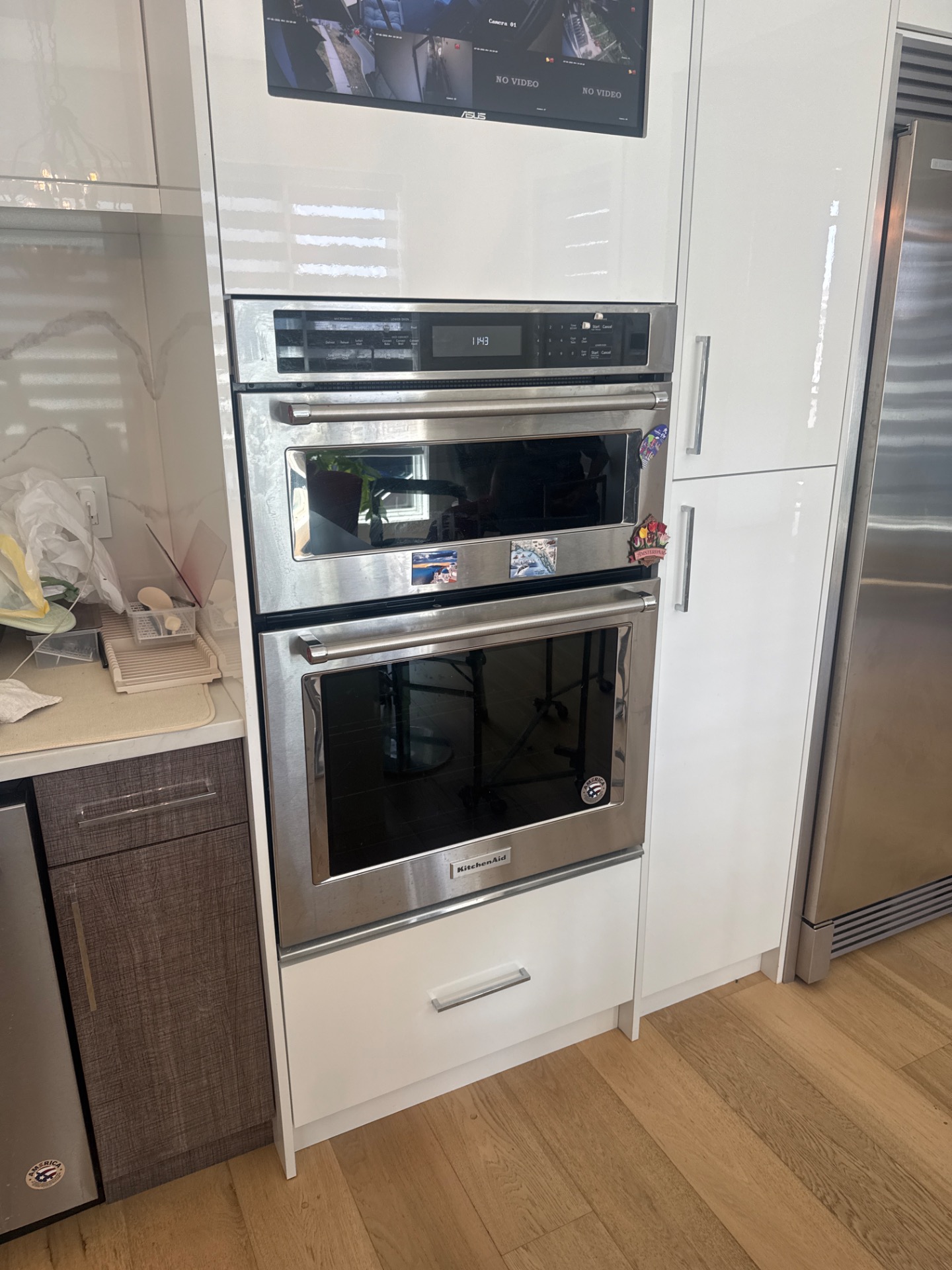

The KitchenAid KOCE500ESS09 pairs a built-in microwave with a lower convection oven in a single tall column, the kind of panel-ready cooking equipment common in newer Grandview Heights kitchens. When a unit like this fails, replacement is not a matter of sliding in a countertop microwave — the built-in dimensions, trim kit, and cabinet cutout are specific to the model. Diagnosing the microwave circuit correctly is what keeps the repair proportionate to the fault instead of escalating to a full appliance swap.
Diagnosis – Reading What F1E5 Actually Reports
On KitchenAid combination microwave-convection ovens, F1E5 flags a communication fault between the main control board and the microwave inverter/magnetron subsystem. In plain terms, the control is calling for microwave power and not getting a valid response back from the circuit that generates it. That narrows the field considerably before a single panel comes off.
Walking the microwave power path from the control outward, three related components were implicated:

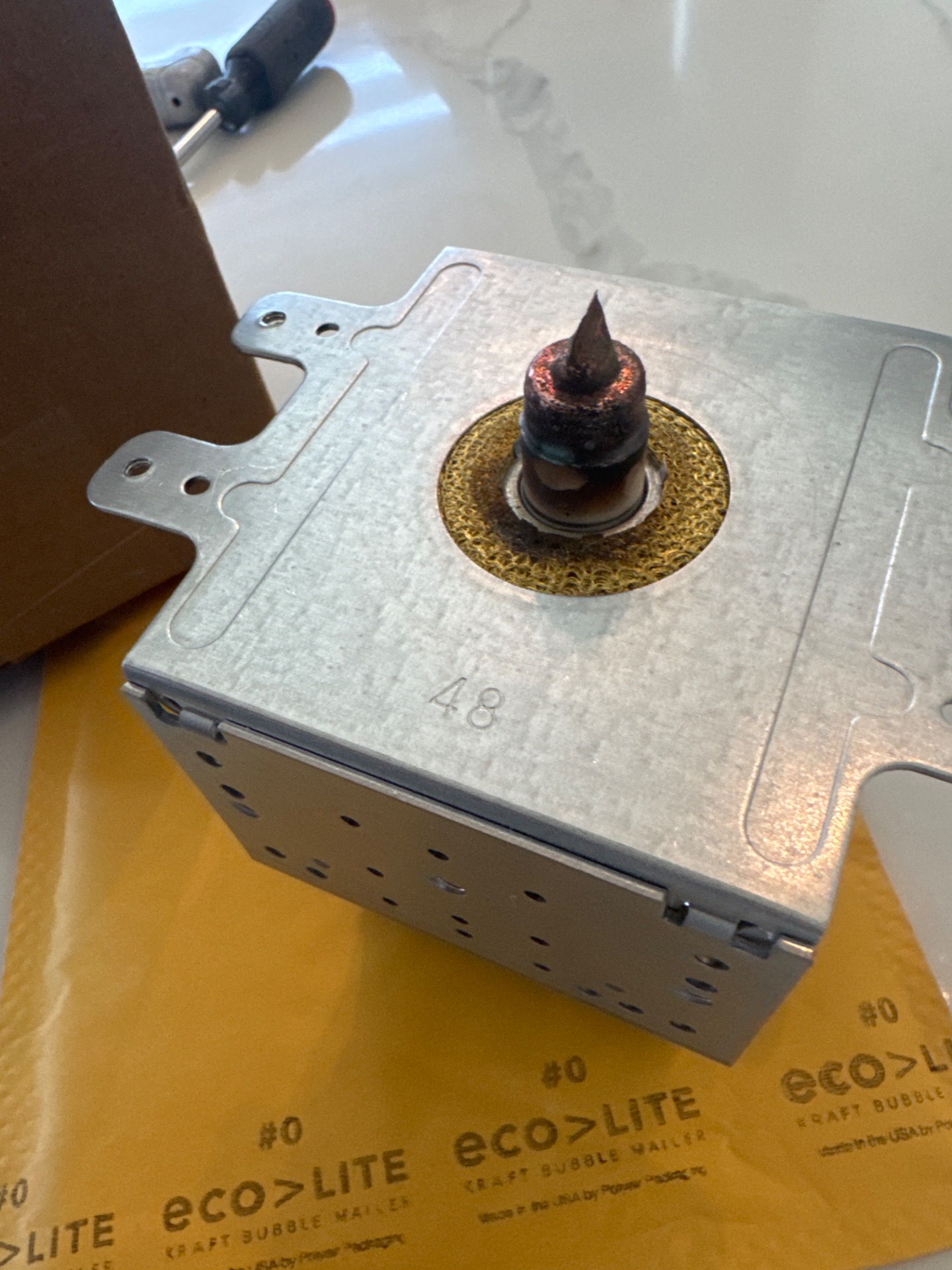

- Step 1 — the magnetron, the vacuum tube that actually generates microwave energy. A failed magnetron produces no output, and its antenna cap showed clear signs of arcing and burn-through.
- Step 2 — the inverter board, the electronics that power and modulate the magnetron. Because the inverter drives the magnetron, a failure on either side stresses the other, and the control reads the mismatch as the F1E5 communication fault.
- Step 3 — the waveguide, the metal channel that carries microwave energy from the magnetron into the cavity. Once a magnetron has arced, the waveguide is inspected for scorching that would compromise clean delivery.
The Repair – Replacing the Microwave Subsystem Together
This visit was the install stage of a multi-visit job: the fault had been diagnosed and the parts ordered on the prior visit, and Alex returned to fit them. Rather than swapping only the obviously burnt magnetron, all three microwave subsystem components were replaced as a set.
Components replaced:
- Magnetron (part #W11346197) — the vacuum tube that generates the microwave energy for cooking
- Microwave inverter board (part #W11325604) — powers and modulates the magnetron; the source of the F1E5 communication fault
- Waveguide (part #W10915651) — directs microwave energy from the magnetron into the cooking cavity
The reason for replacing all three together is failure interdependence. When a magnetron arcs, the inverter that was driving it has almost certainly been stressed; when an inverter fails, it can improperly power a magnetron and shorten its life in turn. Reusing either half alongside a new one invites a repeat F1E5 within weeks — a second service call on the same fault. On a built-in unit where each visit means pulling the appliance from its column, addressing the whole subsystem in one install is the disciplined call.
The Result – Verified on a Full Cook Cycle

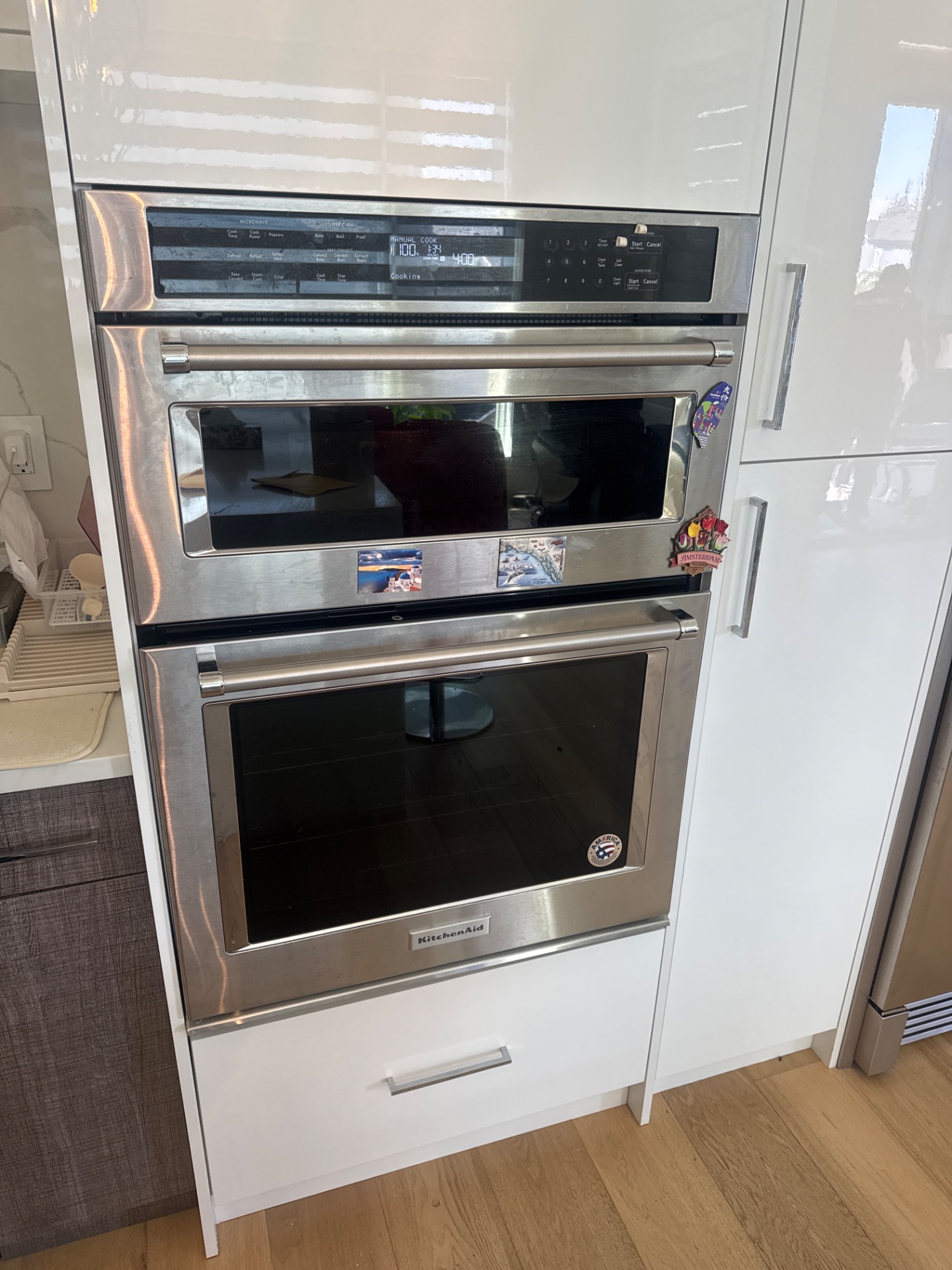

With the new magnetron, inverter, and waveguide fitted, Alex reassembled the unit and ran it through a live cook cycle. The microwave came up to power, the control cleared the F1E5 fault, and all functions tested good before the job was closed out. The completed repair carries TechVill’s 90-day labour warranty.
Repair Cost
The repair was quoted at $1,099 plus 5% GST, for a total of $1,153.95 CAD, itemized transparently: parts $635, parts handling $30, labour $265, and the service call $169. The install-visit balance was settled by credit card. For a premium combination oven whose replacement runs several times that figure, a targeted microwave subsystem rebuild keeps the existing built-in installation intact.
Every part fitted was a genuine Whirlpool/KitchenAid OEM component. On a microwave circuit, that matters more than convenience: an aftermarket magnetron or inverter built to looser tolerances can mistrack the power modulation the control board expects, retriggering the same F1E5 fault the repair was meant to clear.
