Arrival

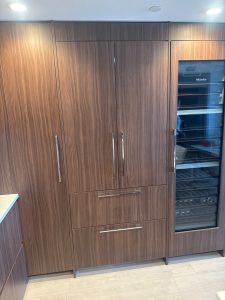

The call came in from a high-rise unit in Vancouver’s Olympic Village, the high-density premium residential district built for the 2010 Winter Games on the south shore of False Creek. The appliance: a Miele MasterCool KFNF 9955 iDE — a panel-ready built-in fridge/freezer with internal ice and water dispenser, sitting at the very top of the global premium-built-in market alongside Sub-Zero, Fhiaba, and Thermador’s Freedom Collection.
Two symptoms on the work order. The unit was not freezing properly, and the controls were not allowing correct temperature adjustment — setpoint changes weren’t being honoured the way they should have been.
Both symptoms together are stop-everything territory on this class of appliance. Replacement on a Miele MasterCool of this configuration is well into five figures, and the cabinetry was built around the existing unit. The diagnostic call has to be right.
What the gauges said
Technician Alexander started with the freezer compartment side of the diagnostic. The freezer-not-freezing complaint combined with control-side misbehaviour pointed at the defrost circuit first — heater, thermal protection, temperature sensing — because a failed defrost cycle would explain both the temperature drift and the control-side confusion (the control board reads bad sensor data, then can’t actuate temperature changes correctly because its inputs are wrong).
The defrost circuit checked out as the working theory. Heater not completing the cycle properly, thermal protection and sensor on the same circuit, all in the failure-likely zone.
But the diagnosis didn’t stop there.
What hands on the compressor casing said
Standard diagnostic discipline on a premium built-in is to read more than one subsystem before closing the call. With the freezer-side complaint explained by the defrost-circuit finding, Alexander did one more check that wasn’t on the work order: he put his hand on the compressor compartment casing.
It was excessively hot to the touch.
That’s not a metered reading. It’s tactile — fundamental refrigeration practice that doesn’t need an instrument to surface a real finding. A compressor compartment that’s running this hot under operation means the heat the sealed system is generating isn’t being rejected at the rate the design calls for. Something on the heat-rejection side is failing.
Pulling the machine compartment cover revealed the second concurrent fault: the condenser fan was not operating. With no airflow across the condenser coils, heat couldn’t leave the sealed system efficiently. The compressor was working much harder than it should, and all the thermal energy that should have been moving outside the cabinet was staying inside the machine compartment — exactly what the tactile check had caught.
Why the two failures probably aren’t independent
This is the part of the diagnosis worth pausing on, because it changes the repair scope.
A condenser fan that’s been failing for an extended period drives elevated heat throughout the machine compartment and the adjacent electronics. That elevated thermal environment accelerates the failure of nearby components — defrost heater, thermal fuse, temperature sensor, control electronics. So the freezer-side defrost-circuit failure may not be a coincidence. It may be a downstream consequence of the condenser-fan failure operating in the background for weeks or months before the customer noticed enough cooling drift to make the call.
Whether the two failures are causally linked or independent, the right repair scope addresses both on the same visit. Going one at a time — fixing the defrost circuit today, leaving the condenser fan to surface its own symptoms next month — would mean two service calls, two cabinetry-pull-out events, two technician dispatches to a Vancouver high-rise. On a Miele MasterCool built-in, pulling the unit out is the labour-intensive part of the job; doing it once for both repairs is the proportionate decision.
A third item was added to the scope: deep condenser coil cleaning. Replacing the fan without restoring the coil’s airflow capacity means the new fan inherits a partially-restricted airflow path. The coil cleaning makes the fan replacement a real fix instead of a half measure.
The repair (scoped — return visit for the install)
Components on order:
- Defrost heater 115V (Miele part #9651010) — heats the evaporator coil during the defrost cycle to clear frost build-up
- Temperature fuse (Miele part #4979445) — thermal protection on the defrost circuit; terminates the cycle if temperatures exceed design limits
- Temperature sensor repair kit (Miele part #7323302) — temperature sensing element that feeds the control board for cycle scheduling and setpoint regulation
- Condenser fan 12V DC, model 3412 NGMER (Miele part #6630022) — moves air across the condenser coils for sealed-system heat rejection; note the low-voltage DC architecture typical on modern premium built-ins
- Fan bracket (Miele part #7647250) — mounting hardware for the replacement fan
All parts sourced as OEM Miele service components. For a unit at this value tier, generic or aftermarket substitution is categorically inappropriate — Miele’s tolerances and service standards require OEM replacements, and the 12V DC fan in particular is a specialty service part that doesn’t have a clean aftermarket equivalent.
Two-technician install scope. The MasterCool built-in installation has to be safely removed from cabinetry for access to both subsystems and the coil cleaning. That requires two technicians for the cabinetry pull-out and reinstall — quoted up front, reflected in the labour line on the customer’s estimate.
The payment workflow
This case happens to be one of the most complete payment-workflow records in the portfolio, alongside the Fhiaba case (also a Lower Mainland premium-built-in repair on a multi-visit schedule).
Quoted total: $1,974 + GST = $2,072.70 CAD (2-technician scope)
Payment progression:
- Service call paid on diagnostic visit: $271.95 ($259 + 5% GST) — will be applied toward the final repair cost, not charged again.
- Parts prepayment to be collected after quote approval, before parts ordering — per TechVill’s standard workflow on special-order premium-brand parts.
- Final balance to be collected on completion of the install visit.
Effective remaining customer balance after the diagnostic: approximately $1,800.75, split between the forthcoming parts prepayment and the final completion balance.
The “service call applied toward repair” structure means the customer isn’t paying twice for the technician’s first trip. The diagnostic effort is real work and it’s billed for. If the customer proceeds with the repair, that billed work credits against the total — the same workflow used on the Fhiaba case in Richmond and on TechVill’s other multi-visit premium-built-in engagements.
What This Case Demonstrates
Tactile diagnostics matter. “Hot to the touch” on the compressor compartment isn’t a number on a meter, but it’s unmistakable thermal stress on a system that shouldn’t be running that hot. The discipline of doing the tactile checks alongside the metered ones is what surfaced the condenser-side failure on this call — the freezer-side complaint alone would have explained the defrost-circuit finding without ever pointing at the condenser fan.
Scoping both subsystems together saves the customer a second cabinetry pull. On a built-in MasterCool, the unit-out-of-cabinetry labour is the largest single cost variable in any major repair. Doing it once for both subsystems instead of twice for one each is a substantial cost difference for the customer and a meaningfully lower risk to the cabinetry, the flooring, and the surrounding millwork.
OEM throughout, on the right parts channel. Five Miele OEM service parts, sourced through the manufacturer’s stream. The 12V DC condenser fan is the kind of specialty component where aftermarket substitution is categorically inappropriate — the wrong fan changes the airflow profile, the thermal load on the compressor shifts, and the unit operates outside its design envelope until the next failure.
